详细介绍
东莞市xk星空体育硅胶制品有限公司
外波纹硅胶钢丝软管FC31
External corrugated silicone wire hose FC31
注:1.的标准产出厚度为6米（特别可私人定制10米）。不错做切短。其他的的公称直径想要不错通过用户的想要来私人定制。 2.在xk星空体育

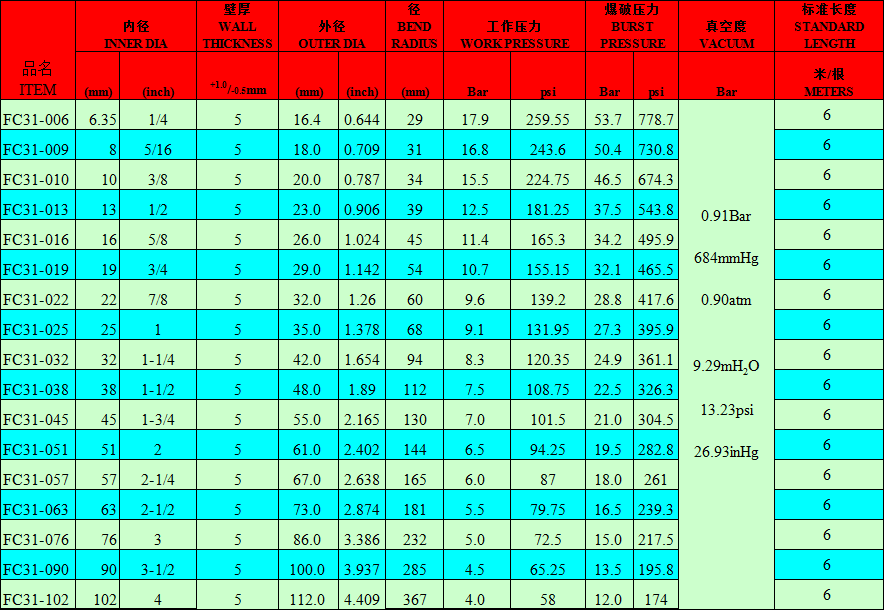

在基本参数表格测试仪是遵循低温，准则大气质量压环境。当压强未变时，气温每持续上升浮度100度，压强会减少百分之15。
REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.
食品应运： 非常引荐使用装运或传送耐折性大的作业施工地点，里边通畅，没和变形，适当传送各乳类材质，并有较高的减震性能方面。互相可能应使用机健身运动频段高施工地点。 车辆结构的： 编制而成：三层楼夹布网纹编制而成 钢线：用到三层304不锈钢材质线，高度为10MM 外光：外形波浪状，内部光滑，如鏡面。字体颜色能否开发右图。 成品属性： ——岗位温差范围图‘-60ºC / +180ºC (-76ºF / +356ºF)在短暂间内能达到 220ºC (392ºF) ——都具有很棒拉伸性，内侧壁光洁清扫，易除垢不粘水，用除垢物除垢后不支承其中残渣物，可按照高温天气压力过热蒸汽进行消毒和灭菌处理——无嗅、无臭,已经残毒，不包括所以塑化剂和添加图片剂成份。已经包含食材FDA和生物体医疗器械级USP的的标准。 配套设施插头： TC连接管（直连快捷连接管316L），SMS连接管，DIN快接，CLAMP，CLOCK，J螺母连接管，等材质原料为304或316L任顾客选购。 品格安全认证： ——白金和铂金透明硅胶橡胶管确认法国FDA 21 CFR 177.2600(保健饮食和性药物治理局)保健饮食级认真。 ——白金矽胶软水管经过芬兰FDA/BfR产品 XV规则申请认真和LFBG和BGVV规则申请认真。 ——白金矽胶排水管满足在俄罗斯医疗仪器USP Class VI级规格认正。 ——钻石热熔胶管独立行使欧盟国家消息2008/95 / ECC的制约选用很多有危害东西(RoHS)认同。
Product application:Specially recommended for transportation and deliverying in working circumstances, which needs the greater bend of the hose, the inner layer is smooth without deformation.Suitable for conveying all kinds of dairy products, and has a better shock absorption properties. At the same time, it can be applied to high mechanical frequency occasions.
Product structure:Weaving: 3 layers of cloth woven meshSteel wire: using single layer of 304 stainless steel wire, the spacing is 10mmAppearance: corrugated outside, smooth inner surface like mirrorcolor: custom made according to customer's request.
Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.
