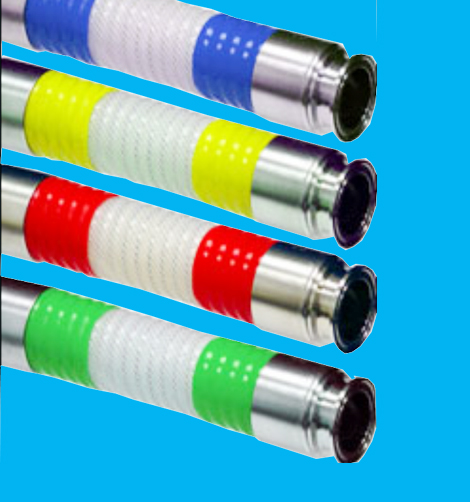

外波纹硅胶钢丝软管FC31
External corrugated silicone wire hose FC31
注:1.标准单位生育尺寸为6米（特殊性可订造10米）。能否做切短。某些的內径条件能否只能根据客服的条件来订造。 2.在xk星空体育
在技术参数表上測試是代履行恒温，标豪迈压感觉。当各种各种压力始终不变时，温度因素每上升的涨幅100度，各种各种压力会减低15%。

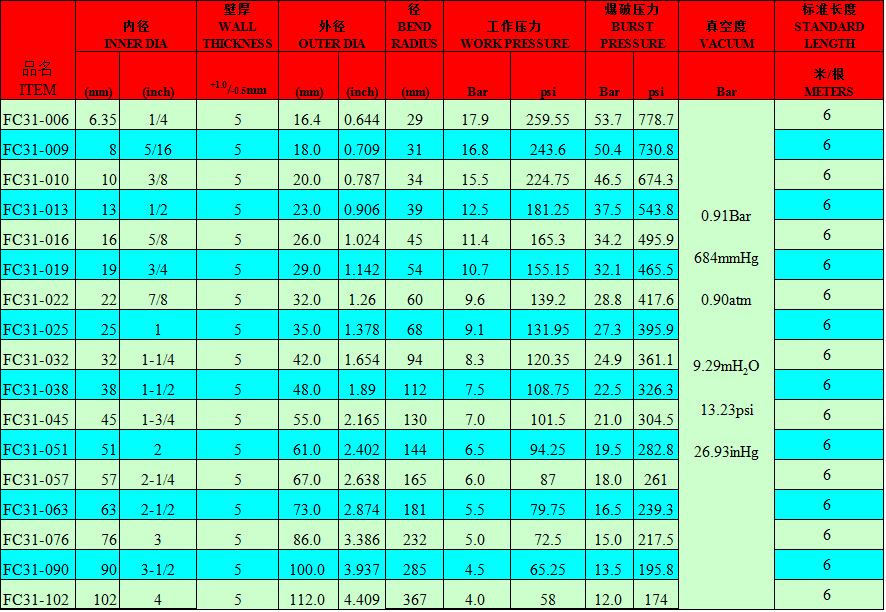

REMARKS: 1, Standard length is 6 meters and we can customize the hose length according to customers' needs.2, The test in the parameter list is in accordance with the normal temperature and the standard atmospheric pressure state. When the pressure is constant, the temperature rise by 100 degrees, the pressure will drop by 15%.
的产品使用： 越来越网友推荐用作运输或运输弯折出现变形性比较大的运转公开领域，内部光滑平整，不会轻易出现变形，是和运输各种类型乳类包装品，并有尽量的减震性。而且能够软件应用作机械厂行动的频率高公开领域。 设备节构： 编结：三层楼夹布网纹编结 铁丝：利用双层304不锈铁丝，排距为10MM 外装：外形波浪纹状，内壁上均匀，如雾面。色调会私人订制图甲。 品牌特质： ——工作上温暖区域‘-60ºC / +180ºC (-76ºF / +356ºF)在短暂间内相当于到 220ºC (392ºF) ——兼备不错弯曲变形性，外壁平滑保养，易除垢不粘水，用除垢物除垢后不粘接什么留物，可按照高温髙压髙压蒸汽发生器紫外线灯消毒和高压蒸汽灭菌——无嗅、没味,压根无毒害，只含任意塑化剂和获取剂营养成分。压根按照物品FDA和动物医疗器具级USP的标准。 搭配金属接头： TC线管接线头（直达快速的线管接线头316L），SMS线管接线头，DIN快接，CLAMP，CLOCK，J螺距线管接线头，等原材料为304或316L任雇主调选。 品质保证v认证： ——钻石矽胶塑料软管确认新加坡FDA 21 CFR 177.2600(保健食品类和类药管理制度局)保健食品类级企业认证。 ——钻石透明硅胶橡胶管顺利通过法国FDA/BfR零件图 XV准则规范认证服务服务和LFBG和BGVV准则规范认证服务服务。 ——白金和铂金硅橡胶橡胶软管合乎用美利坚医疗器材USP Class VI级规格资格认证。 ——白金和铂金透明硅胶管遵循欧洲共同体控制台命令2008/95 / ECC的减少用某一些微害元素(RoHS)被认可。
Product application:Specially recommended for transportation and deliverying in working circumstances, which needs the greater bend of the hose, the inner layer is smooth without deformation.Suitable for conveying all kinds of dairy products, and has a better shock absorption properties. At the same time, it can be applied to high mechanical frequency occasions.
Product structure:Weaving: 3 layers of cloth woven meshSteel wire: using single layer of 304 stainless steel wire, the spacing is 10mmAppearance: corrugated outside, smooth inner surface like mirrorcolor: custom made according to customer's request.
Product characteristics:-The working temperature range: -60 to +180 degrees Celsius (or -76 to +356 degrees Fahrenheit) and it can reach 220 degrees Celsius (or 392 degree Fahrenheit) in a short period of time-With a good bend, the inner wall is smooth and clean, easy to be washed, no water sticking, After cleaned by cleaning materials, no residue remained. The steam disinfection and sterilization can be done under high temperature and high pressure.-Odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully comply with the requirements of food FDA and biological medical grade USP.
