详细介绍

食品运用：非常主要用于于有机危险物品治理 ，食品类热饮，医疔探索，水治理 工程建筑，医药集团类，实验操作室，印刷厂，生物体技術，半导体设备，生命是什么生物学（组织结构和細胞教育培养，腐熟）等制造业。身休填充液，血清类传送。包涵邻苯二甲酸盐塑化剂，就不会融进一些的传送药液。

品牌因素：村料：卫生间级钻石矽胶料工作而成。外表面上：外表面上精度等级高，都没有丝毫香味，无色透明的。还具有非溶血里。——无嗅、无臭,是甘平，不使用任何人塑化剂和使用剂营养成分。是达到面制品FDA和生态学医疗器材级USP VI的必须。——这种管经常是最外层为黑色钻石硫化橡胶矽胶。

产品申请认证：——橡胶软管采用美利坚共和国FDA 21 CFR 177.2600(食材和抗癫痫药物方法局)食材级资质认证。——胶管使用德BfR零配件 XV标淮身份验证和LFBG身份验证。——高压软管根据欧共体电脑指令2008/95 / ECC的的限制适用某种危害性有毒物质(RoHS)同意。

品名     PART NAME	管号     HOSE NO	内径     INNER DIA		外径     OUTER DIA		工作压力     WORK PRESSURE		爆破压力     BURST PRESSURE		弯曲半径     BEND RADIUS		真空度     VACUUM		标准长度     STANDARD LENGTH
		mm	inch	mm	inch	bar（tested at 20 degree Celsius）	psi   (tested at 68 degree Fahrenheit)	bar（tested at 20 degree Celsius）	psi   (tested at 68 degree Fahrenheit)	mm	inch	Bar	Psi	米/根     METERS PER PC
BH00-0155	#15	4.76	3/16"	7.92	0.31"	0.90	13.05	2.7	39.15	20	0.79	N/A	N/A	200
BH00-016	#16	3.18	1/8"	6.34	0.25"	1.45	21.03	4.35	63.08	30	1.18	N/A	N/A	200
BH00-017	#17	6.35	0.25"	9.60	0.36"	0.90	13.05	2.7	39.15	40	1.57	N/A	N/A	200
BH00-018	#18	7.90	0.31"	11.11	0.42"	1.00	14.50	3	43.50	60	2.36	N/A	N/A	200
BH00-024	#24	6.40	0.25"	11.40	0.42"	1.00	14.50	3	43.50	90	3.54	N/A	N/A	200
BH00-025	#25	4.80	3/16"	8.00	0.31"	2.40	34.80	7.2	104.40	110	4.33	N/A	N/A	200
BH00-026	#26	6.40	0.25"	13.00	0.52"	2.70	39.15	8.1	117.45	150	5.91	N/A	N/A	100
BH00-035	#35	7.90	0.31"	14.70	0.57"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-036	#36	9.50	0.37"	14.70	0.43"	2.70	39.15	8.1	117.45	280	11.02	N/A	N/A	100
BH00-070	#70	7.90	0.31"	18.90	0.57"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-073	#73	7.90	0.31"	16.10	0.57"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-082	#82	12.70	0.50"	19.30	0.75"	2.70	39.15	8.1	117.45	200	7.87	N/A	N/A	100
BH00-087	#87	12.70	0.50"	25.30	1.00"	2.40	34.80	7.2	104.40	200	7.87	N/A	N/A	100
BH00-088	#88	12.70	0.50"	22.20	1.00"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-088	#89	15.90	0.62"	22.20	0.87"	1.40	20.30	4.2	60.90	200	7.87	N/A	N/A	100
BH00-091	#91	19.05	0.75	32.60	1.25"	2.40	34.80	7.2	104.40	350	13.78	N/A	N/A	100

Product application:Widely used in chemical materials treatment, food and beverage, medical research, water treatment projects, pharmaceutical, laboratory, printing, biological technology, semiconductor, Life sciences (tissue and cell culture, fermentation), etc.also used for human injection and serum delivery. The hose does not contain adjacent benzene two formate plasticizer and the transmission fluid will not penetrate.

Product description:-used in liquid and semi fluid food of medicine and cosmetic products, bio engineering.-Standard length is 20 meters per roll, and we can also to produce the specified size and length according to customer requirements.Our hose products has passed the certification of the United States FDA grade and Class VI USP and German BFR.

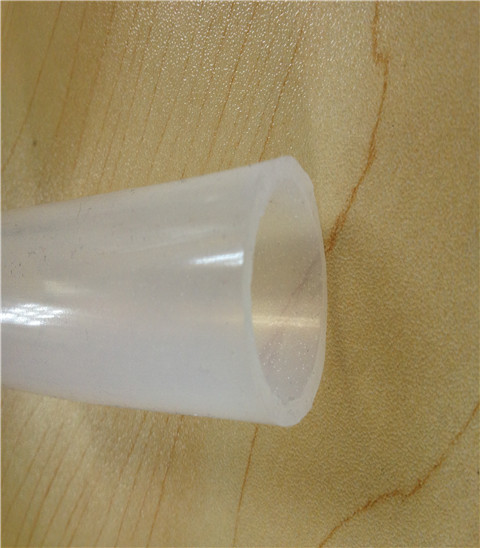

Product characteristics:Material:Sanitary grade platinum silicone materials.Surface: high accuracy on the surface,tasteless, colorless and Non hemolytic-odorless, tasteless, non-toxic, does not contain any additives and plasticizer. Fully meet the requirements of food FDA and biological medical grade VI USP.-the outer layer of these hoses is the transparent platinum vulcanization silicone.

Quality certification:-pass the United States FDA 21 CFR 177.2600 (food and Drug Administration) food grade certification.-pass the German BFR parts XV standard certification and LFBG certification.-in accordance with the EU directive 2008/95/ECC limitation usage of certain hazardous substances (RoHS) recognition.-in accordance with ISO10993, NSF51 and European Pharmacopoeia 3.1.9 requirements.
