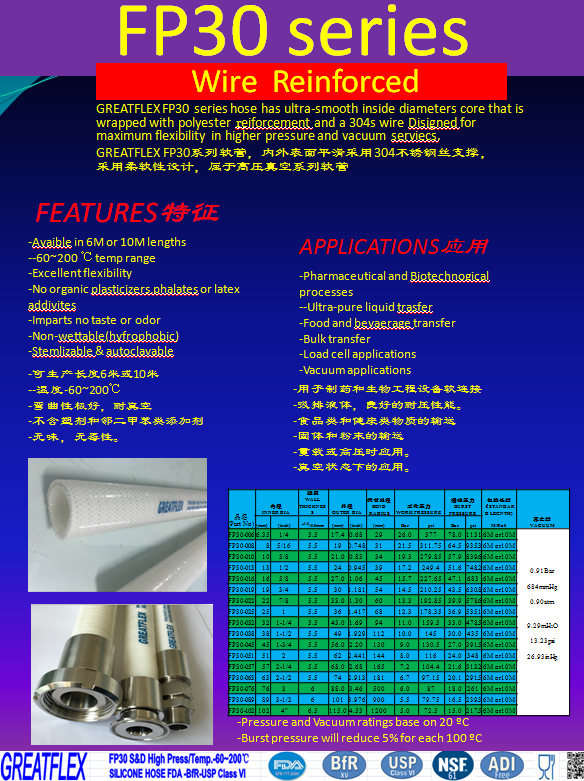

GREATFLEX FP30系列的连接管，前后表明纹理所采用304不锈不锈钢装饰管吗钢丝作为支撑，采取比较柔柔性构思，应属于油田高压气产品塑料软管
-Avaible in 6M or 10M lengths
--60~200 ℃ temp range
-Excellent flexibility
-No organic plasticizers,phalates or latex addivites
-Imparts no taste or odor
-Non-wettable(hyfrophobic)
-Stemlizable & autoclavable
品名 | 内径 | 厚度 | 外径 | 拆弯半径 | 工作压力 | 爆破压力 | 包装长度 | 真空度度 | ||||
(mm) | (inch) | +1.0/-0.5mm | (mm) | (inch) | (mm) | Bar | psi | Bar | psi | M/Roll | ||
FP30-006 | 6.35 | 1/4 | 5.5 | 17.4 | 0.68 | 29 | 26.0 | 377 | 78.0 | 1131 | 6M or10M | 0.91Bar |
FP30-008 | 8 | 5/16 | 5.5 | 19 | 0.748 | 31 | 21.5 | 311.75 | 64.5 | 935.3 | 6M or10M | |
FP30-010 | 10 | 3/8 | 5.5 | 21.0 | 0.83 | 34 | 19.3 | 279.85 | 57.9 | 839.6 | 6M or10M | |
FP30-013 | 13 | 1/2 | 5.5 | 24 | 0.945 | 39 | 17.2 | 249.4 | 51.6 | 748.2 | 6M or10M | |
FP30-016 | 16 | 5/8 | 5.5 | 27.0 | 1.06 | 45 | 15.7 | 227.65 | 47.1 | 683 | 6M or10M | |
FP30-019 | 19 | 3/4 | 5.5 | 30 | 1.181 | 54 | 14.5 | 210.25 | 43.5 | 630.8 | 6M or10M | |
FP30-022 | 22 | 7/8 | 5.5 | 33.0 | 1.30 | 60 | 13.3 | 192.85 | 39.9 | 578.6 | 6M or10M | |
FP30-025 | 25 | 1 | 5.5 | 36 | 1.417 | 68 | 12.3 | 178.35 | 36.9 | 535.1 | 6M or10M | |
FP30-032 | 32 | 1-1/4 | 5.5 | 43.0 | 1.69 | 94 | 11.0 | 159.5 | 33.0 | 478.5 | 6M or10M | |
FP30-038 | 38 | 1-1/2 | 5.5 | 49 | 1.929 | 112 | 10.0 | 145 | 30.0 | 435 | 6M or10M | |
FP30-045 | 45 | 1-3/4 | 5.5 | 56.0 | 2.20 | 130 | 9.0 | 130.5 | 27.0 | 391.5 | 6M or10M | |
FP30-051 | 51 | 2 | 5.5 | 62 | 2.441 | 144 | 8.0 | 116 | 24.0 | 348 | 6M or10M | |
FP30-057 | 57 | 2-1/4 | 5.5 | 68.0 | 2.68 | 165 | 7.2 | 104.4 | 21.6 | 313.2 | 6M or10M | |
FP30-063 | 63 | 2-1/2 | 5.5 | 74 | 2.913 | 181 | 6.7 | 97.15 | 20.1 | 291.5 | 6M or10M | |
FP30-076 | 76 | 3 | 6 | 88.0 | 3.46 | 500 | 6.0 | 87 | 18.0 | 261 | 6M or10M | |
FP30-089 | 89 | 3-1/2 | 6 | 101 | 3.976 | 900 | 5.5 | 79.75 | 16.5 | 239.3 | 6M or10M | |
FP30-102 | 102 | 4" | 6.5 | 115.0 | 4.53 | 1200 | 5.0 | 72.5 | 15.0 | 217.5 | 6M or10M | |
